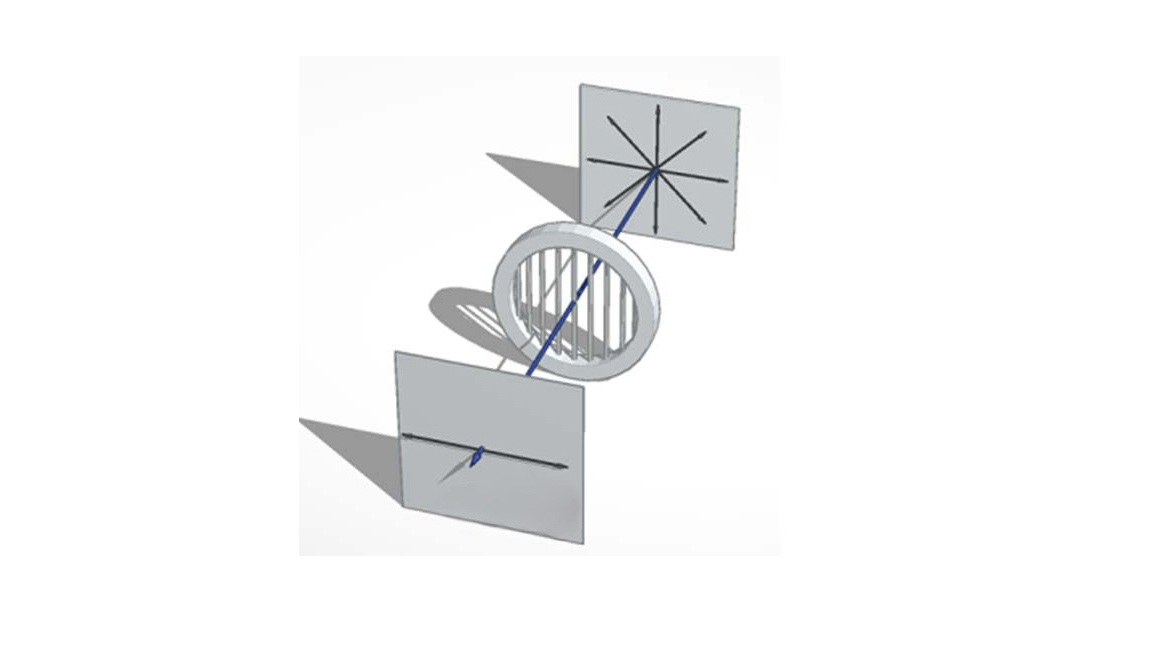

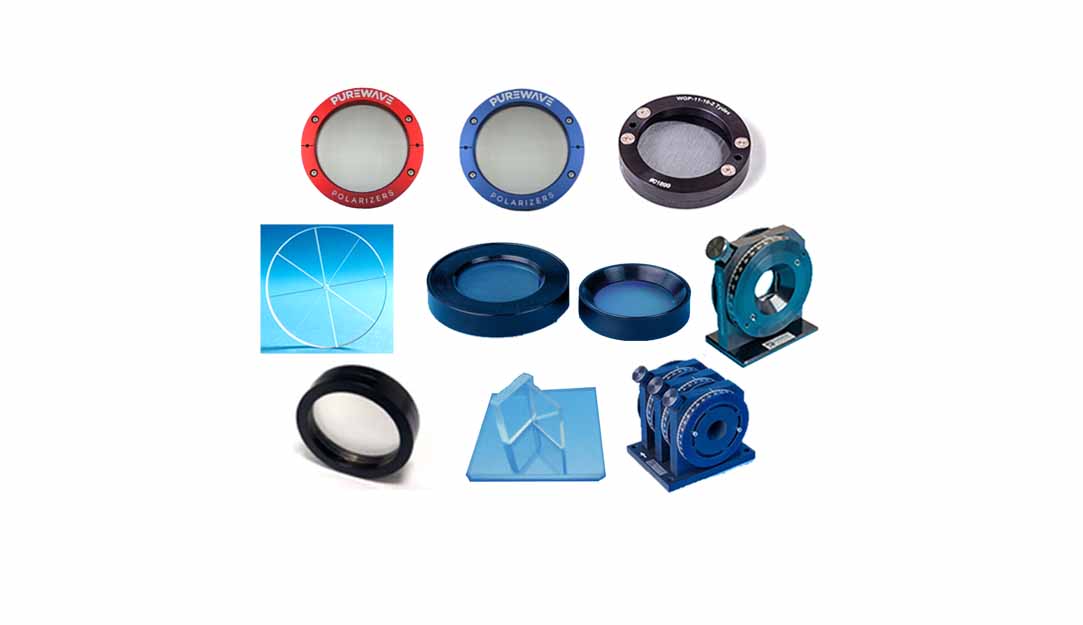

Free-standing wire-grid terahertz polarizers serve as low-loss polarization components for millimeter and sub-millimeter wavelength radiation (e.g., in the far-infrared or terahertz frequency range). Typical applications include their use as linear polarizers for mid-infrared to millimeter-wave terahertz radiation, beam splitters or polarizing interferometers, couplers for long-wavelength radiation, and variable attenuators or variable reflectors. Please note that, as polarization-sensitive elements, they inherently introduce polarization into the system when used as attenuators, reflectors, or couplers.

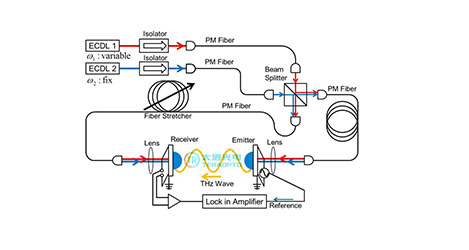

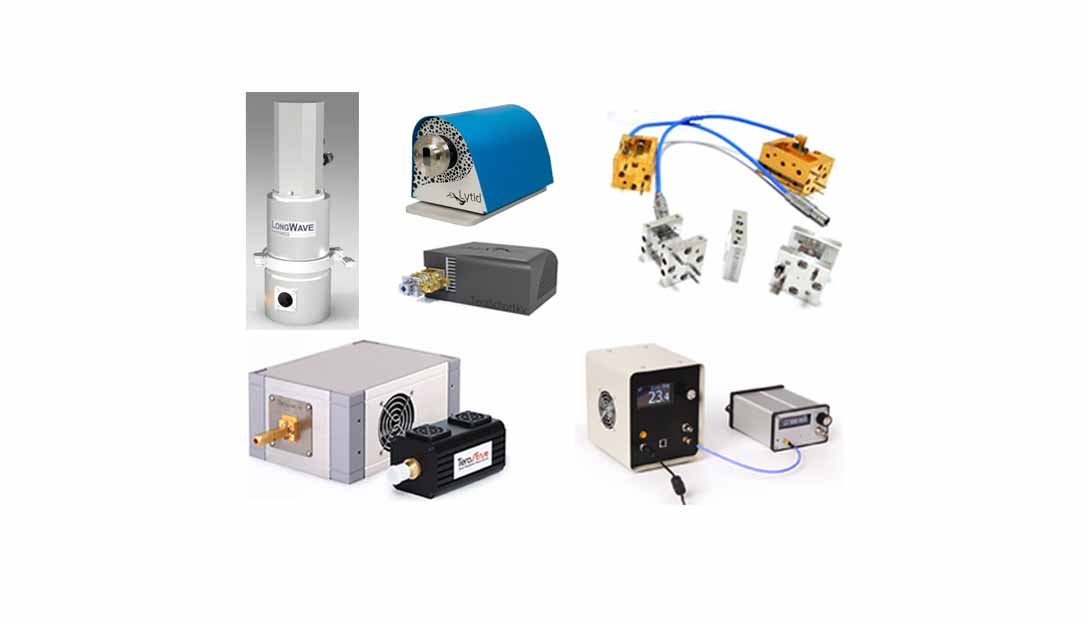

Continuous-wave terahertz (CW-THz) radiation generated via the photoconductive effect can convert the difference-frequency signal of two lasers into a terahertz signal in the electrical domain. The frequency resolution of a CW-THz system is limited only by the laser linewidth. Typical applications of continuous terahertz radiation include high-resolution spectroscopy, imaging, and precise monitoring of specific spectral lines. The terahertz modules developed by the Fraunhofer Heinrich Hertz Institute (HHI) leverage mature optoelectronic communication technologies, enabling terahertz technology to better serve a wide range of industrial applications and environments.

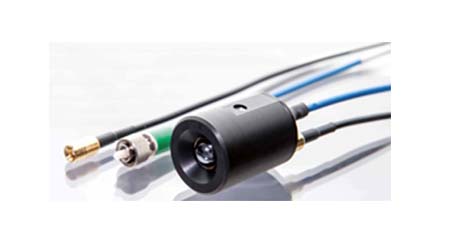

The fiber-coupled photoconductive antennas developed by the Fraunhofer Heinrich Hertz Institute (Fraunhofer HHI) are widely used in commercial terahertz time-domain spectrometers due to their excellent performance. However, compared to conventional single-layer LT-GaAs/InGaAs antennas, these antennas are more susceptible to damage—particularly the emitter side. The following section provides a detailed overview of the operating conditions and precautions for using HHI fiber-coupled photoconductive antennas.

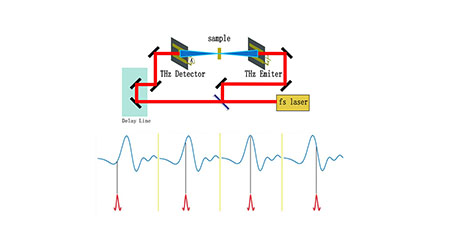

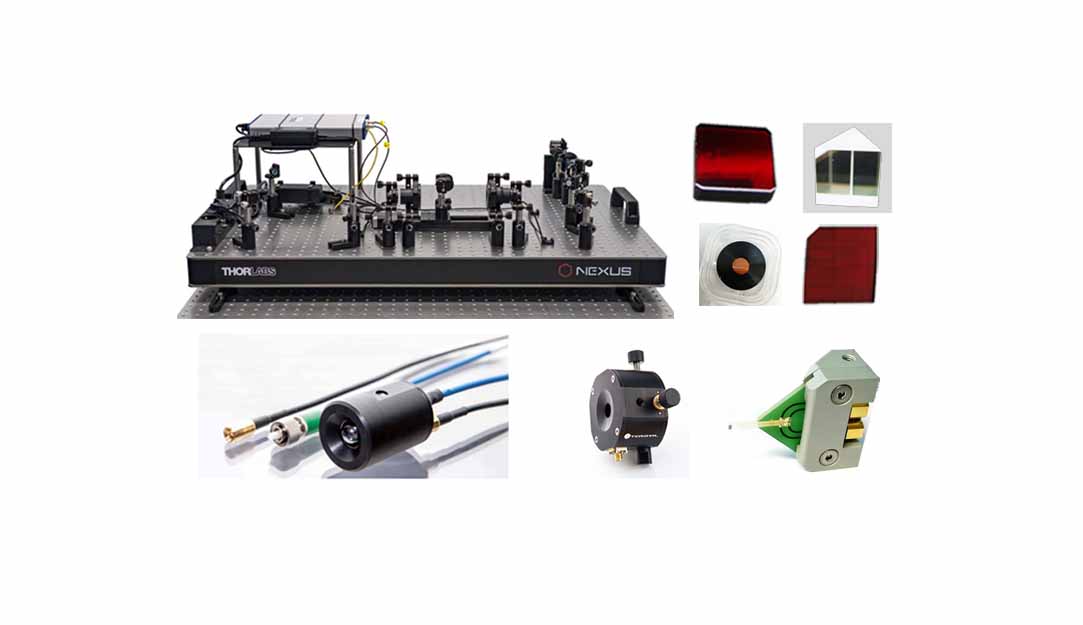

If your laboratory already has a femtosecond laser—whether a femtosecond fiber laser or a Ti:sapphire femtosecond laser, either from an oscillator or an amplifier stage—as long as the pulse width is on the order of 100 fs, you can build a terahertz time-domain spectroscopy (THz-TDS) system at a low cost.
