THz Metal-Coated Hollow Optical Fiber
Product Introduction

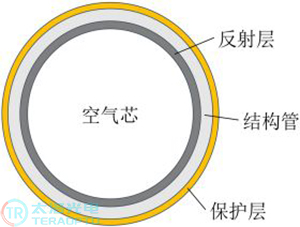

Our company's metal-coated far-infrared/THz/millimeter wave hollow-core optical fibers have high flexibility, low loss and large bandwidth as their core advantages, breaking through the bottleneck of THz wired transmittance. This product supports customization of different inner diameters ranging from 1.0 - 8.0 mm. The production length of THz optical fibers can reach 10 m, and it offers different packaging solutions such as metal armor or polymer protective layer.
• Optimize linear loss<1.5 dB/m @ 0.1 THz
• It can achieve high bandwidth and low dispersion transmittance
• Fiber optic length：1-10 m（customize）
• Fiber core diameter：3.0-8.0 mm（customize）
• Can provide single-mode single-polarization waveguide
• High flexibility and robustness
Specification Parameter
Product Name | Product Model | Internal Diameter（mm） | Straight-Line Loss(dB/m Max) | Product Feature |
THz Optical Fiber | THZ-HPF-400 | 4.00 | ＜ 1.5@0.1THz | ＜2.0@0.1THz (r=20cm; α=360°) |
THz Optical Fiber | THZ-HPF-3015 | 3.0/1.5 | ＜ 2.0@0.1THz | Single-mode single-polarization feature： Straight line≥99.9%； Bending120°（ Bending radius10cm） or distorted ±90°≥99.5% |
THz Optical Fiber | THZ-HPF-300 | 3.00 | ＜ 1.5/2.5@0.3/0.1THz | Applicable temperature range ：-78.5℃~15 |
THz Optical Fiber | THZ-HPF-425 | 4.25 | ＜ 1.0/1.5@0.3/0.1THz | |
Note: For all THz optical fiber products, the length, core diameter, connectors, etc. can all be customized. For more specifications and parameters, please feel free to contact us. | ||||
Application Case
• 6G THz wired communication
• Trace gas detection, gas sensing
• THz waveguide probe imaging
