THz Beamsplitter
Product Introduction
Tera photoelectric Technology offers two different specifications of THz beamsplitter

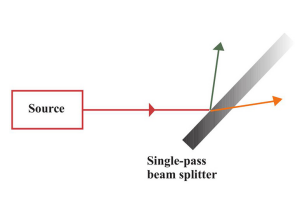

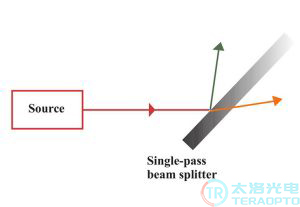

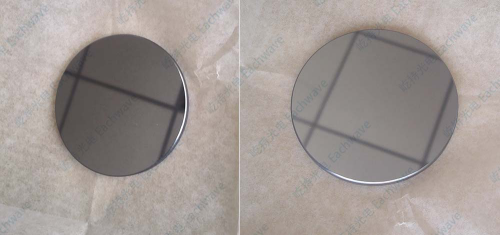

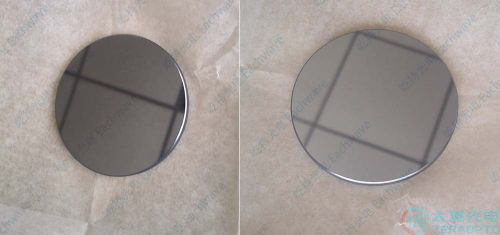

Single-pass beamsplitter: used in optical schemes where radiation passes through the beam splitter only once

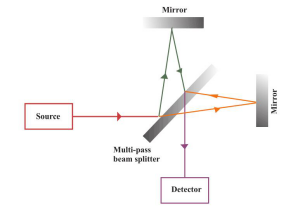

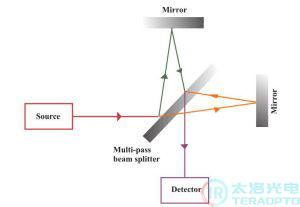

Multiprism beamsplitter: used in interferometer configurations, where the light beam needs to pass through the beam splitter multiple times
Technical Parameters
Single-Pass Beamsplitter | Multiprism Beamsplitter | |
Material | HRFZ-Si | HRFZ-Si |
Part type | Flat - Flat | Flat - Flat |
Maximum Size | Diameter can reach up to 150 mm | |
Diameter Tolerance | ±0.1 mm | |
Thickness Tolerance | ±0.1 mm | ± 0.01 mm |
Clear Aperture | ≥ 90% | ≥ 90% |
Parallelism | arc.min 3 | arc.sec 5 |
Surface Quality（scr/dig） | 60/40 | |
Surface Accuracy | ±0.01 mm | 1λ@633nm |
Regular Model
Single-Pass Beamsplitter Model | Diameter | Thickness | Multiprism Beamsplitter Model | Size | Thickness |
W-HRFZ-Si-D25.4-T1 | 25.4 mm | 1 mm | BS-HRFZ-Si-L40-H30-T3.5 | 40mm*30 mm | 3.5 mm |
W-HRFZ-Si-D38.1-T1 | 38.1 mm | 1 mm | BS-HRFZ-Si-D50.8-T3.5 | Diameter 50.8 mm | 3.5 mm |
W-HRFZ-Si-D50.8-T1 | 50.8 mm | 1 mm | / | / | / |
*Other size specifications can be customized according to specific requirements
The material of the THz spectroscope is HRFZ-Si. These spectrometers can transmit/reflect light within a wide wavelength range without any coating, and the transmission/reflectance ratio is approximately 54/46 (%).

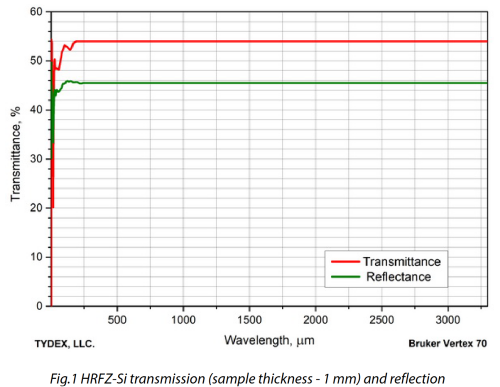

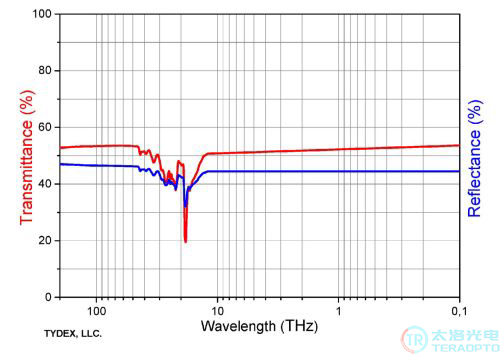

The reflectance and transmittance curves are shown in the figure:
Data Download
>>Download THz Beam Splitters Datasheet (PDF, 84 KB)
