THz Attenuation Plate for Domestic Brand
THz Attenuation Plate Product Introduction
Shanghai Tera photoelectric Technology Co., LTD has launched its independently developed THz Attenuation Plate, which also offers smooth attenuation effects in the infrared band. The price is favorable. Please feel free to inquire.
The wedge-shaped silicon wafers that have undergone metallization treatment have different attenuation levels. Currently, there are four types, with transmittance rates of 40%, 25%, 15%, and 1.5% respectively.
These attenuators can be used individually or in combination to achieve different attenuation rates. The transmittance curves of the attenuator components (without smoothed noise processing, raw data) are shown below.
THz Attenuation Plate model specifications
Product Name | Model | Diameter（mm） | Thickness(Wedge-shaped) | Transmittance |
THz Attenuation Plate | TR-THZ-ATT-#1-D50.8 | 50.8 | 1mm-1.31mm | ~40% |
THz Attenuation Plate | TR-THZ-ATT-#2-D50.8 | 50.8 | 1mm-1.31mm | ~25% |
THz Attenuation Plate | TR-THZ-ATT-#3-D50.8 | 50.8 | 1mm-1.31mm | ~12.5% |
THz Attenuation Plate | TR-THZ-ATT-#4-D50.8 | 50.8 | 1mm-1.31mm | ~1.5% |
| Composite product name | Model | Clear Aperture | Specification | |

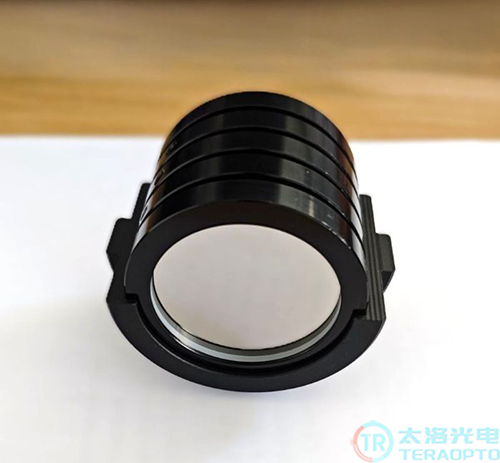

| THz Attenuator | TR-THZ-ATT-47 | 47mm | Contains 4 attenuation plates and can hold up to 5 plates in total | |

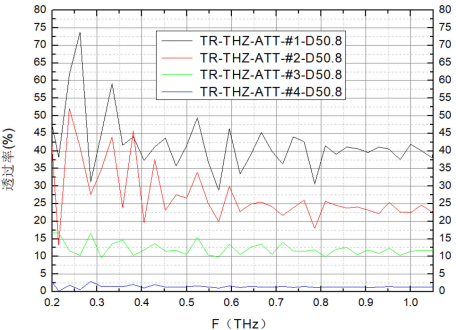

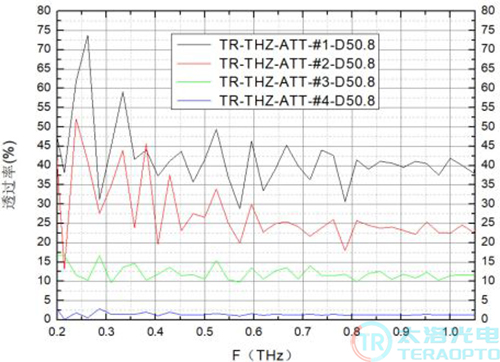

THz Attenuation Plate for the 0.2 - 1.1THz wavelength range (THz Time-Domain Spectrometer)

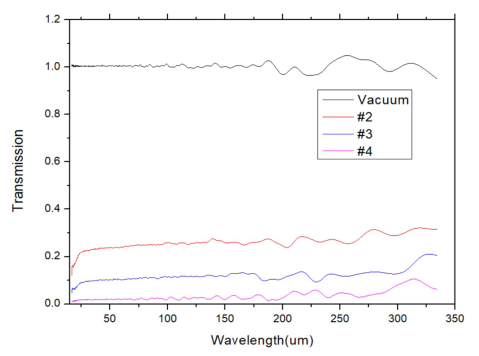

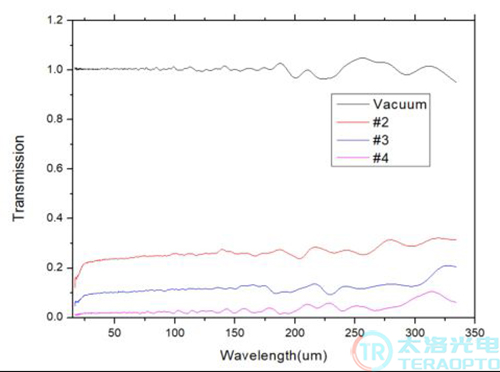

THz Attenuation Plate for the 25um-350um wavelength range（Bruker V7）

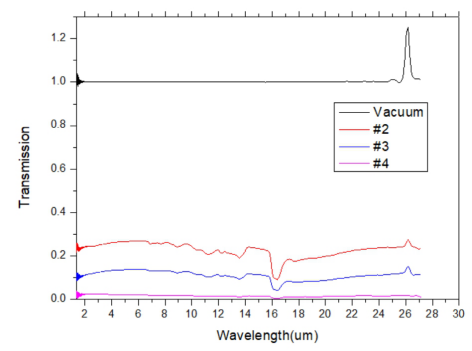

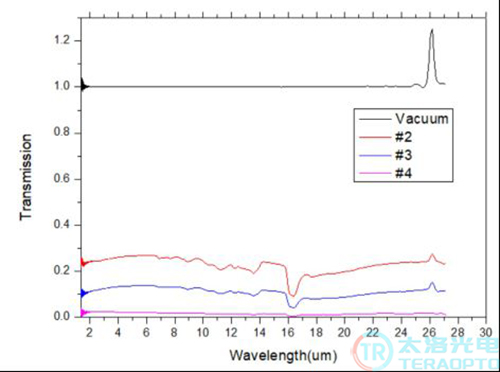

THz Attenuation Plate for the 2um-26um wavelength range（Bruker V7）

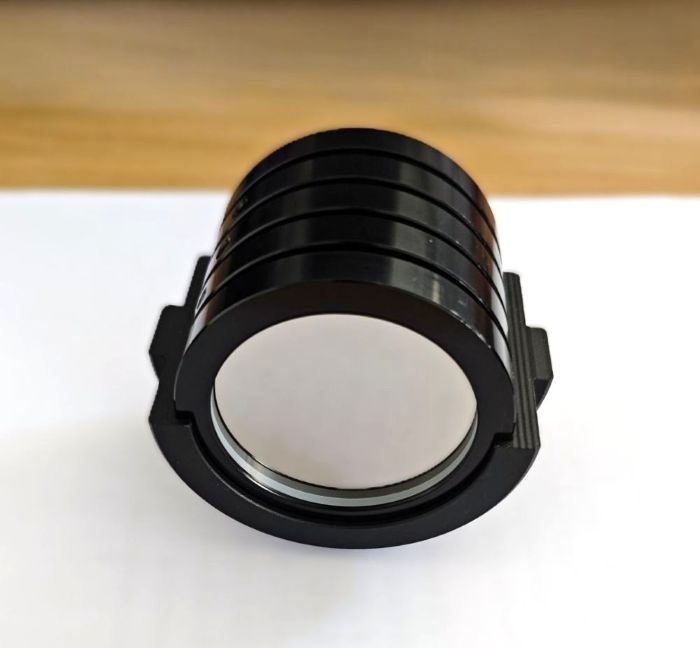

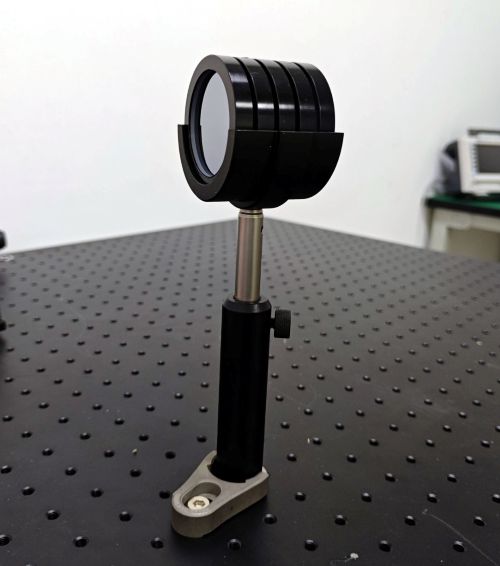

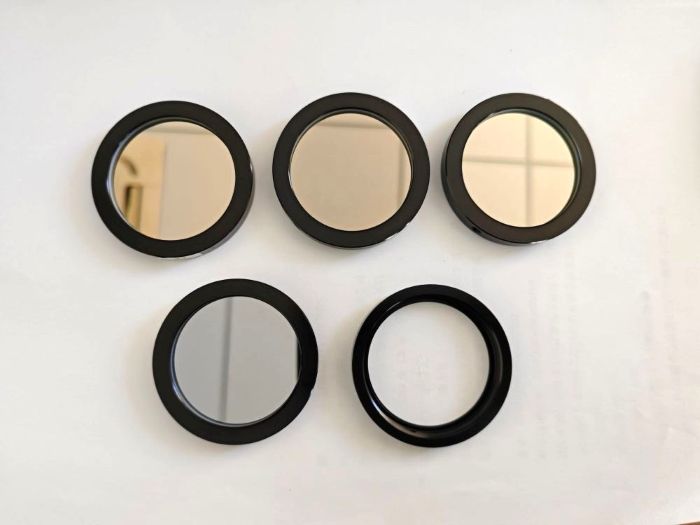

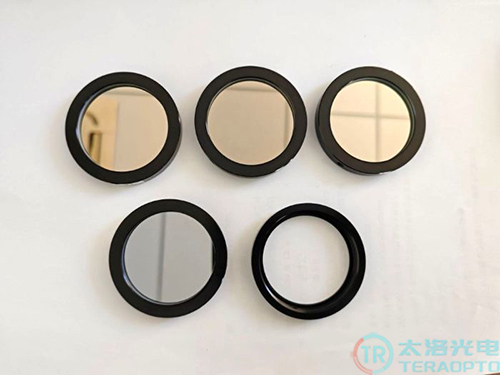

Product Picture
| Model | Inventory Quantity | Turnover Time |
| TR-THZ-ATT-#1-D50.8 | 30 | 2026-5-12 |
| TR-THZ-ATT-#2-D50.8 | 30 | 2026-5-12 |
| TR-THZ-ATT-#3-D50.8 | 30 | 2026-5-12 |
| TR-THZ-ATT-#4-D50.8 | 30 | 2026-5-12 |
| TR-THZ-ATT-47 | 10 | 2026-5-12 |
