High-Resistance Silicon Wedge Lens, THz Lens

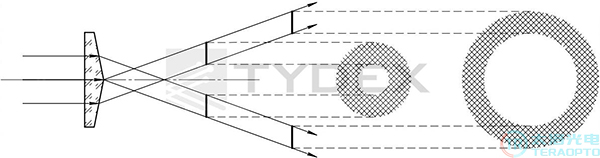

The conical lens, or cone lens, launched by Shanghai Tera photoelectric Technology, is used to transform a Gaussian beam into a Bessel beam. The high-resistance silicon conical lens can focus the incident beam onto a straight line composed of a group of points along the optical axis. This line forms an equal-width ring, whose diameter increases as the distance from the optical element increases.
General Parameters
| Material | HRFZ-Si |
| Type | Axicon (Conical Lens) |
| Diameter (Customizable) | 25-150mm |
| Dimensional Tolerance | ±0.2mm |
| Thickness Tolerance | ±0.3mm |
| Roughness | Ra 15nm |
| Coating | High-Resistance Silicon materials can be coated with anti-reverse membranes. |
