Tunable THz Waveplate THz Waveplate TWPC
Product Introduction
THz monochromatic waveplates are generally used to convert the polarization state at a specific wavelength. Since these waveplates only work for a single wavelength, they are inconvenient for certain applications, such as tunable thz sources. Under such circumstances, the tunable thz waveplate (TWPC) serves as a sensible alternative.
The tunable thz waveplate newly released by Tera realizes phase conversion for any single wavelength across a spectral range. The supporting software computes conversion parameters and operating ranges.This tunable thz waveplate is composed of three transparent birefringent quartz plates. Each plate is mounted on a rotary stage for 360° rotation. The three rotary stages are precisely aligned and secured to a shared baseplate. These plates can be rotated to designated angles to deliver the required phase retardation for different polarization states at a target wavelength.Rotation angles are calculated by the software. In addition to plate‑rotation angles, the software also computes phase retardation values, effective optical axes, and the correlations between polarization angles and corresponding wavelengths.
Main Parameters：
Operating Mode | Operating Wavelength Range |
Half‑wave plate | Any wavelength within 80 μm‑160 μm (1.875‑3.75 THz) |
Quarter‑wave plate | Any wavelength within 150 μm‑300 μm (1‑2 THz) |
Birefringent Filter | 120 um（2.5THz） |
Clear Aperture | 24 mm |
Calculated data and measured data
Test data for different operating modes of the tunable thz waveplate (TWPC) were all acquired using the Bruker Vertex 70 Fourier‑transform spectrometer.
1，Tunable THz Waveplate (TWPC) acting as a 1/2 waveplate

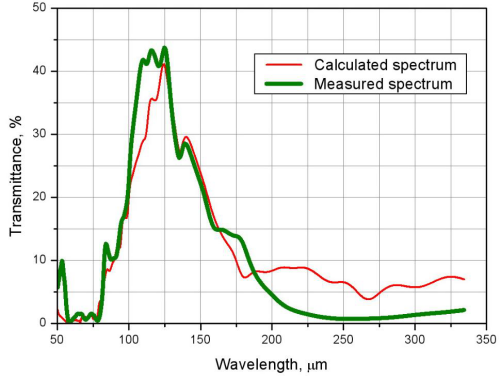

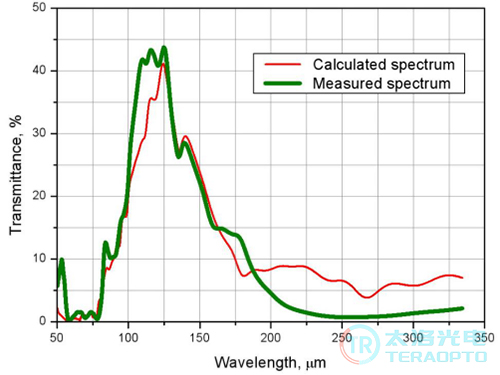

The TWPC is placed between two parallel polarizers, with a test wavelength of 120 μm
2，Tunable THz Waveplate (TWPC) acting as a 1/4 waveplate

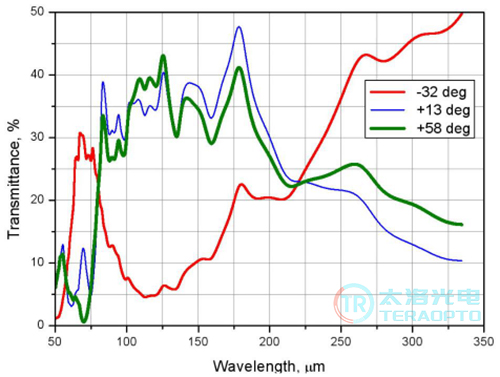

Calculated data: The TWPC is placed between two polarizers. Transmittance curves of the analyzer at different angles are obtained for a test wavelength of 220 μm

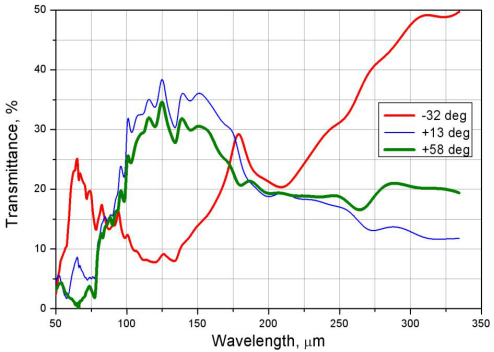

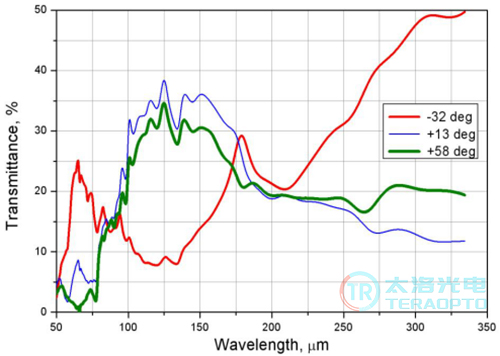

Measured data: The TWPC is placed between two polarizers; transmittance curves of the analyzer at different angles, test wavelength of 220 μm
3，Tunable THz Waveplate (TWPC) acting as a birefringent filter

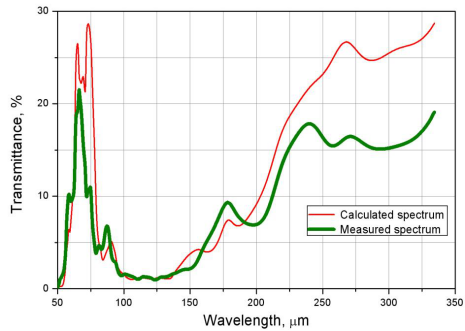

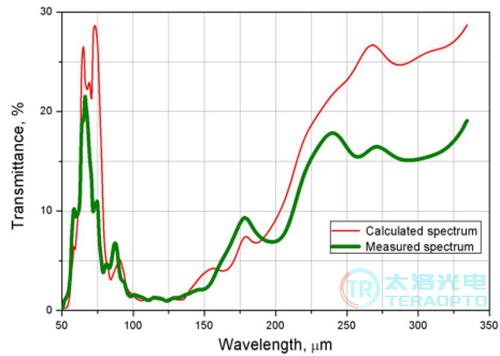

The TWPC is placed between two crossed polarizers, with a test wavelength of 120 μm
