Zinc Telluride Crystal ZnTe Crystal
Product Introduction
[110]The ZnTe (teflon) crystal with a crystalline orientation is often used to generate terahertz oscillations through optical rectification. The optical rectification effect is a second-order nonlinear effect and also a special type of difference frequency effect. A laser pulse with a certain width, which has a very wide frequency component, will interact with each other (mainly through difference frequency) to produce electromagnetic waves ranging from 0 to several terahertz.
Terahertz pulses can be optically detected through another [110] crystal orientation in zinc telluride (ZnTe). The terahertz light pulse causes the ZnTe crystal to exhibit birefringence. Therefore, when the terahertz light pulse and the visible light pulse propagate in a straight line simultaneously in the zinc telluride crystal, the polarization state of the visible light will change accordingly. Using a λ/4 wave plate, a polarization beam splitter, and a balanced photodiode, we can monitor the polarization state of the visible light and thereby obtain various parameters such as the amplitude and delay of the terahertz light pulse. This ability to monitor the complete electromagnetic field information (amplitude and phase delay) of the terahertz light pulse is one of the attractive features of the time-domain terahertz spectrometer.

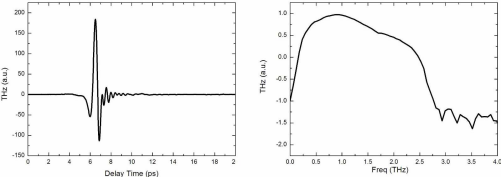

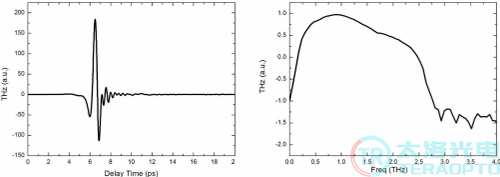

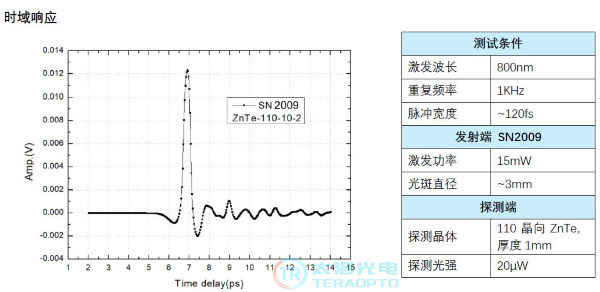

Typical time-domain spectra and frequency spectra of ZNTe crystals (both the transmitter and receiver are ZNTe crystals with a thickness of 1 mm and oriented along the [110] crystal plane. Excitation wavelength: 800 nm; repetition rate: 1 kHz; pulse width: 120 fs).

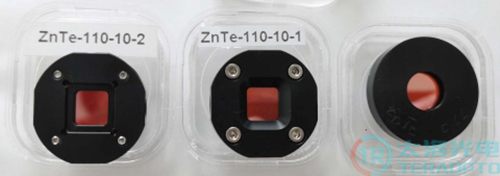

Zinc telluride crystal (ZnTe): Model specifications
Name of a part | Model* | Crystal orientation | Size** | Thickness | Installation Frame Specification |
znte crystal | ZnTe-110-10-0.1 | 110 | 10mm*10mm | 0.1mm | Outer diameter： 25.4mm
Edge thickness： 5mm-8mm
|
znte crystal | ZnTe-110-10-0.2 | 110 | 10mm*10mm | 0.2mm | |
znte crystal | ZnTe-110-10-0.5 | 110 | 10mm*10mm | 0.5mm | |
znte crystal | ZnTe-110-10-1 | 110 | 10mm*10mm | 1mm | |
znte crystal | ZnTe-110-10-2 | 110 | 10mm*10mm | 2mm | |
znte crystal | ZnTe-110-10-3 | 110 | 10mm*10mm | 3mm | |
znte crystal | ZnTe-110-10-0.1-100-2 | [110]/[100]*** | 10mm*10mm | 0.1mm[110] |
*The above models are always in stock.
**Customizable ZnTe crystals in larger sizes are available, including those with 111 and 100 crystal orientations.
***A[110]-oriented ZnTe crystal with a thickness of 0.1 mm is optically bonded onto a[100]-oriented ZnTe crystal with a thickness of 2 mm.

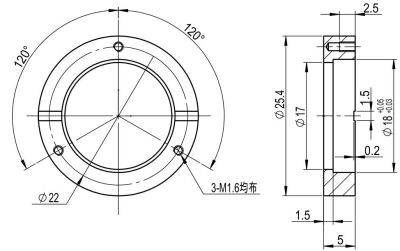

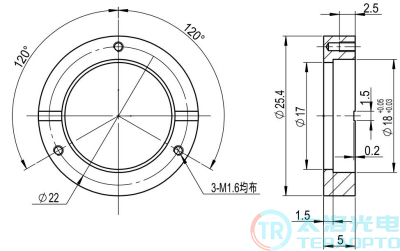

Dimensional drawing of the crystal mounting frame

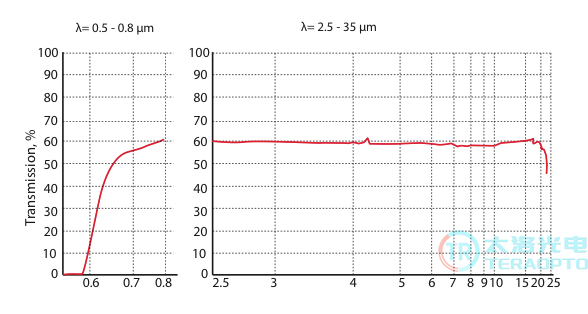

Transmittance curve of ZnTe crystals in the visible to infrared spectrum.
| Name of a part | Model | Quantity | Refresh time |
| Zinc telluride crystal | ZnTe-110-10-0.1 | 5 | 2026-06-12 |
| Zinc telluride crystal | ZnTe-110-10-0.2 | 0 | 2026-06-12 |
| Zinc telluride crystal | ZnTe-110-10-0.3 | 0 | 2026-06-12 |
| Zinc telluride crystal | ZnTe-110-10-0.5 | 48 | 2026-06-12 |
| Zinc telluride crystal | ZnTe-110-10-1 | 36 | 2026-06-12 |
| Zinc telluride crystal | ZnTe-110-10-2 | 5 | 2026-06-12 |
| Zinc telluride crystal | ZnTe-110-10-3 | 1 | 2026-06-12 |
