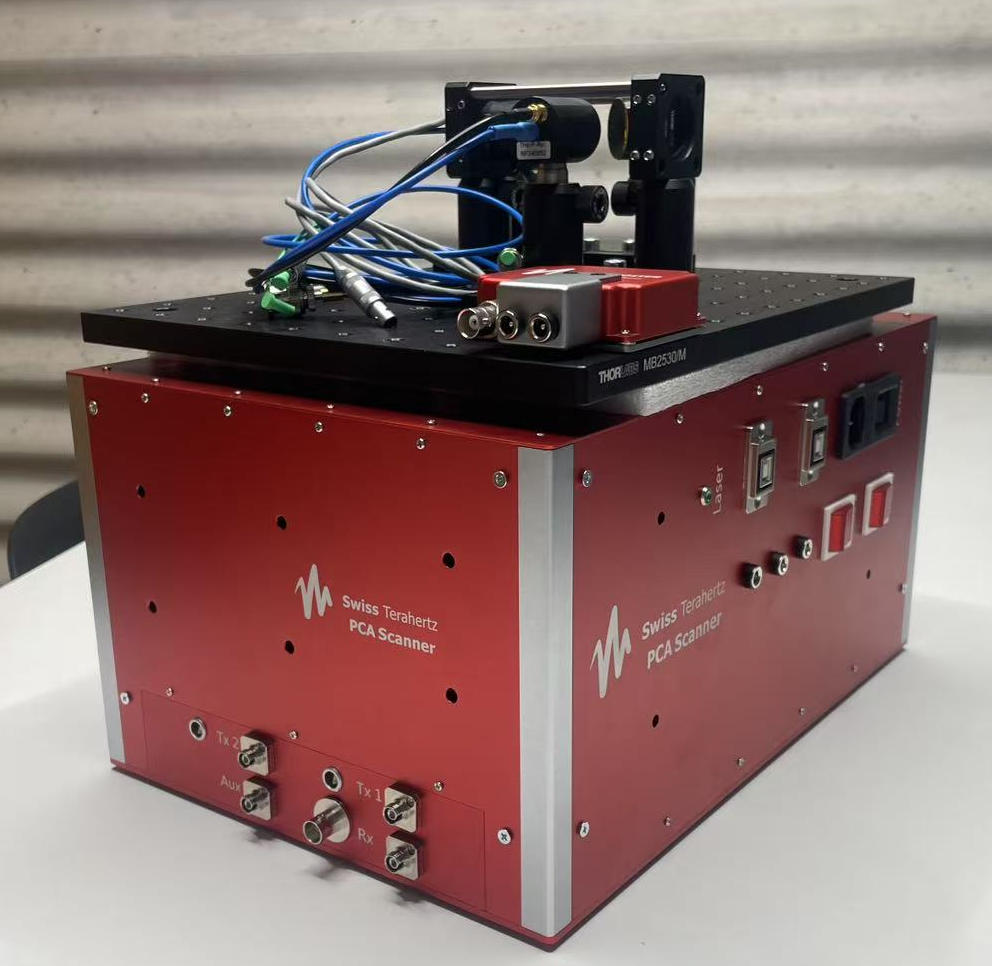

All-fiber terahertz time-domain spectrometer
Product Introduction
The all-fiber terahertz time-domain spectrometer system of Swissterahertz features high stability in fiber coupling and a wide spectral range. It can fully meet the basic testing requirements of customers for terahertz time-domain spectrometers.
Great value for money!!! Call us for inquiries.

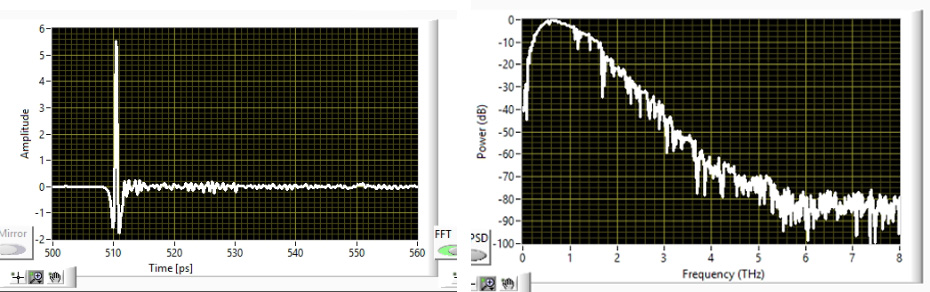

Terahertz Time-Domain Spectroscopy and Frequency Spectroscopy
Product Features
-Fiber-coupled transmitters and receivers
-Maintenance-free industrial-grade 24/7 operation - high stability
-Analysis tools for material composition and imaging (optional)
-Imaging detection based on the RIGI micro-thermoluminescence camera (optional)
-The transmitters and receivers manufactured by HHI (Germany)
Technical Specifications for All-Optical Fiber Terahertz Time-of-Flight Spectrometer
THz Spectrometer Specifications and Parameters | Basic parameters | Optional options |
Spectral Range | ＞5 THz | ＞6 THz |
Dynamic Range | ＞75 dB | ＞100 dB |
Average Power | Up to100 uW | Up to300 uW |
Scanning Range | 600 ps | 2 ns |
THz Spectral Resolution | ＜2 GHz | ＜0.5 GHz |
Housing Material | Aluminum | Titanium |
Laser | Toptica Photonics / FemtoFErb 1560 FD6.5 | |
Antenna | Fraunhofer / Toptica InGaAs/InP fiber-coupled antenna | |

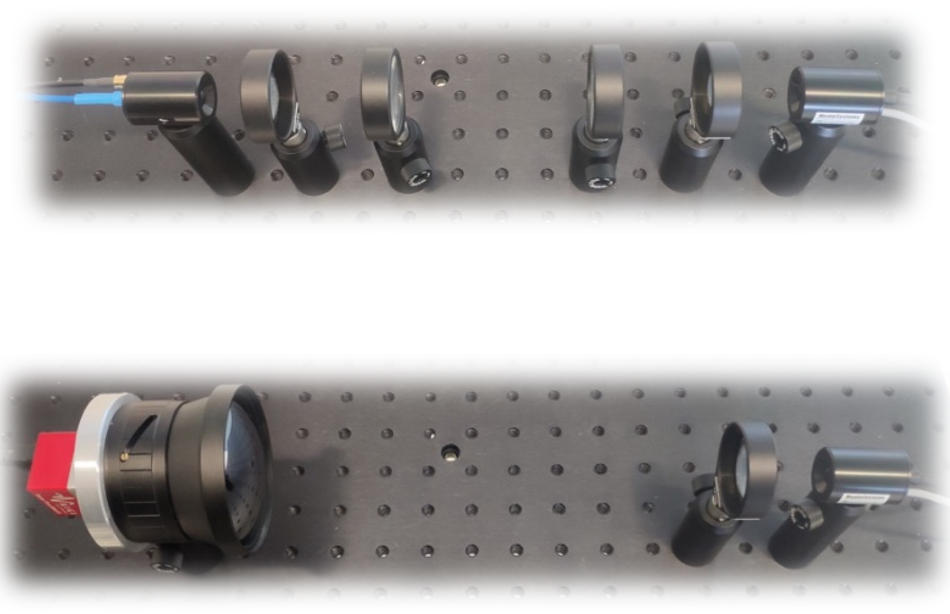

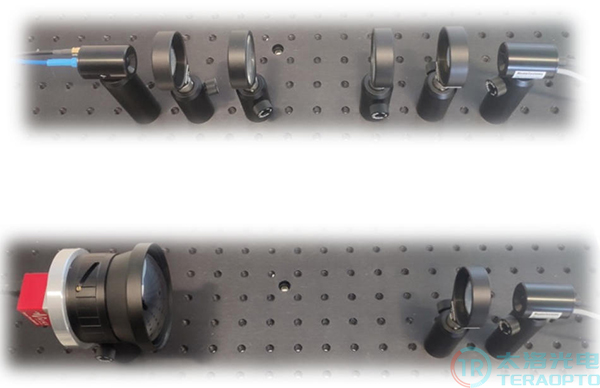

Optical Setup | Off-axis parabolic mirror/TPX lens | |
Configuration |
| |
Imaging Camera | RIGI uncooled microbolometer camera with lens | |

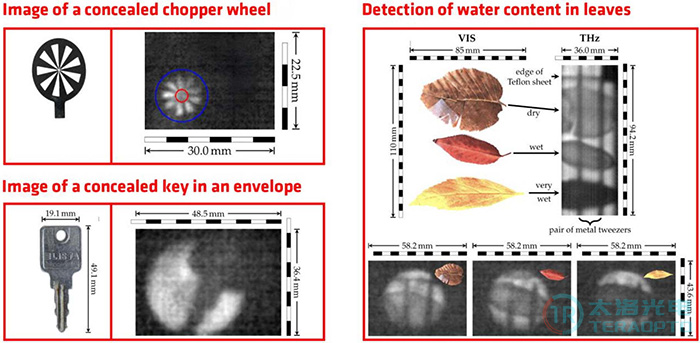

Real-time Imaging Performance of Terahertz Time-Domain Spectrometer with RIGIS2X
